TECHNICAL DATA:

Strokes:
Longitudinal X 800 mm
Cross Y 500 mm
Vertical Z 500 mm

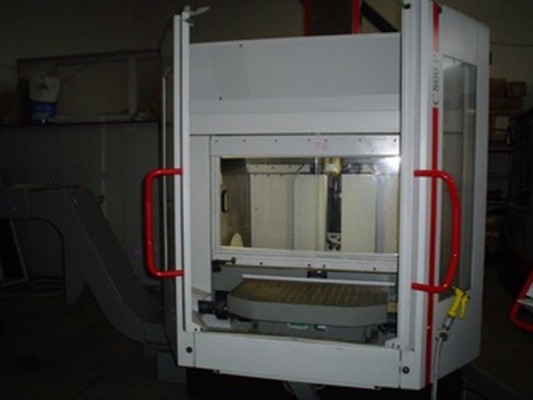

Changing table:
Time table change sec. 4
Dimensions table surface (approx.) mm 2x800x500
Table surface without grooves and holes without letting:
2 × 250 kg load admitted

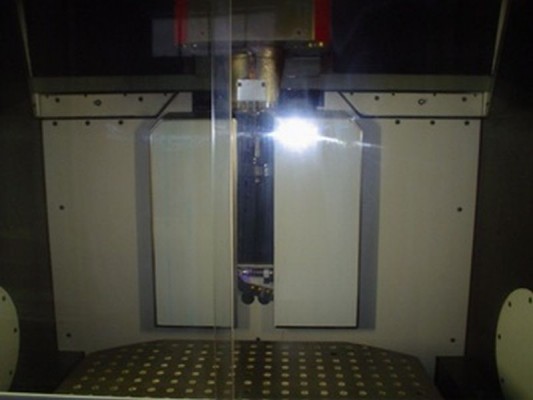

Main spindle:
Spindle power 40% to 15 kW AC
Spindle power 100% ED AC 10 kW
Spindle speed r / min 20 to 8000
Torque at 100% ED (40%) 87 Nm (130)
Vertical spindle taper SK40 according to DIN 2079

Axles:
Fast X / Y / Z m / min 30
Acceleration m / sec ² 5
Feed force 8000 N
Diameter and thread pitch mm 40/20

Tool magazine:
Pockets n. 30
Max. 80 mm
Max. 125 mm with adjacent tools
Maximum length 300 mm
Tool change time chip to chip sec. 5
Max tool weight 8 kg
Max load 120 kg stock
The tool holders and tools used with 8000 RPM spindle version must be balanced according to DIN ISO 1940 Part 1: balancing quality G 6.3
Tool holders and tool spindle used in version 20 to 15000 rpm.
Balancing quality required above 8000 rpm: 2.5 G
The tool spindle version with over 8000 RPM must be balanced.

Refrigerator:
Tank capacity l 300
Pump power l / min 40
3 bar pressure

Measurement Systems:
optical lines 0.0001 mm
Positioning accuracy according to VDI / DGQ 3441
TP in the axes X / Y / Z 0.008 mm
Total power required kWA 37
Network 400 V 50 Hz
Air pressure 6 bar
Weight: about 8 tons with a pallet changer.
Dimensions: Length x width mm 3260 × 2210
Mesh filter
Height-adjustable levelers
Cooling of the electrical cabinet for adjusting the temperature

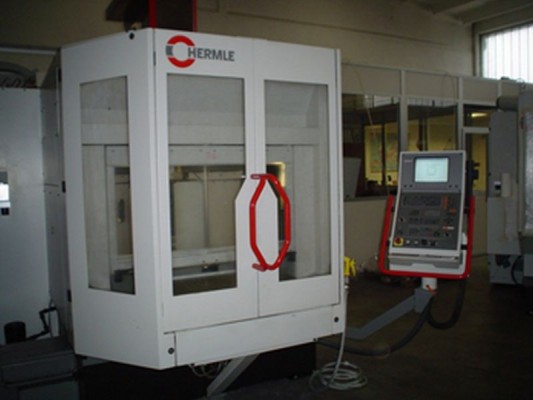

Includes fully enclosed cab roof with lifting device for loading cranes at ½, equipment cleaning table, washing gun chips for cleaning equipment.

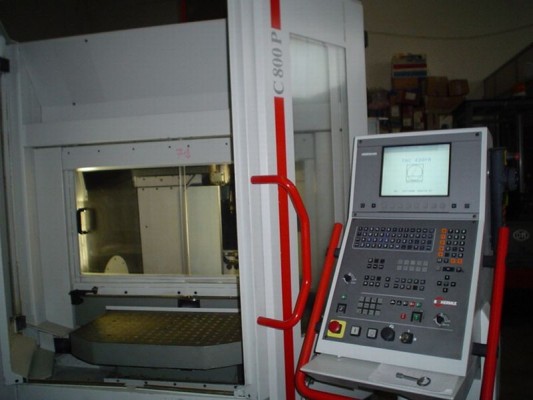

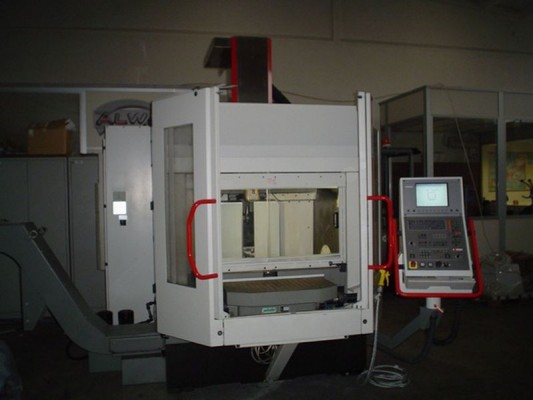

Heidenhain control module for electronic handwheel
Module with electronic handwheel for manual controls and buttons for controlling the axes, fast forward, and emergency stop buttons consent.
Electronic compensation of thermal expansion for the axes Y and Z with the temperature sensor on the main spindle and on the base of the machine, the values ​​resulting from a change in temperature are compensated for automatically.
chip conveyor
Painting: RAL 7005 dark gray

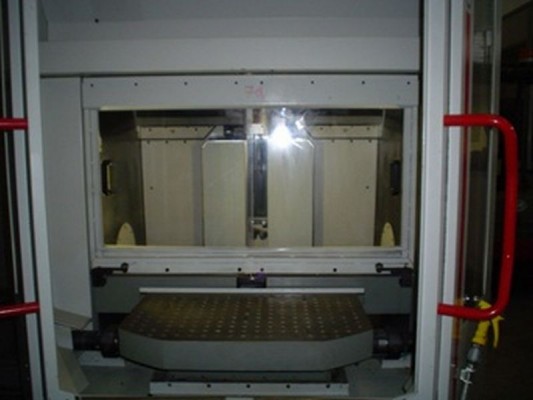

Drilling pallet shuttle table
Drilling pallets 40 x 40 mm, hole M12 / collar 16 F7; tot. N. 406 holes

Data must be verified
