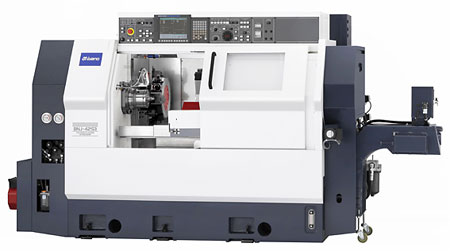

lathe cnc turning center miyano series bnj 34 s3 / 42 s3

Comments Off on lathe cnc turning center miyano series bnj 34 s3 / 42 s3 Stock Removal, New Machines, Miyano

Home \ lathe cnc turning center miyano series bnj 34 s3 / 42 s3

TECHNICAL SPECIFICATIONS

Items	Model Name	BNＪ-34S3	BNJ-42S3
Machining Capacity & Chucking System
Max. Bar Capacity	L spindle	φ34mm (1.34″ Dia.)	φ42mm (1.65″ Dia.)
	R spindle	φ34mm (1.34″ Dia.)	φ42mm (1.65″ Dia.)
Type of Collet Chuck	L/R spindle	Stationary	Stationary
Standard Turning Length		100 mm	100 mm
Size of Power Chuck	L/R spindle	5″/4″	5″/4″
Spindle
Spindle Nose	L/R spindle	Sp. Flat/Sp. Flat	Sp. Flat/Sp. Flat
Spindle Speed Range	L spindle	80〜7,000 min-1	60〜6,000 min-1
	R spindle	67〜5,000 min-1	67〜5,000 min-1
Spindle Motor (30min./Cont.)	L spindle	7.5/5.5kW	11/7.5kW
	R spindle	5.5/3.7kW	5.5/3.7kW
R-SP Slide Stroke	X2	70mm	70mm
	Z2	525mm	525mm
Main Turret
Type of Turret Station		12 Station	12 Station
Turret Indexing Time		0.25sec. /1st.	0.25sec. /1st.
Turret Indexing Methods		AC Servo & Curvic C.	AC Servo & Curvic C.
Slide Stroke	X1	165 mm	165 mm
	Z1	246 mm	246 mm
	Y1	—	—
Back-working Turret
Type of Turret Station		6 Station	6 Station
Turret Indexing Time		0.2sec. /1st.	0.2sec. /1st.
Turret Indexing Methods		AC Servo & Curvic C.	AC Servo & Curvic C.
Revolving Tools (Main Turret / Option)
No. of Revolving Tools Station		12	12
Tool Speed Range		60〜6,000 min-1	60〜6,000 min-1
Tool Motor		2.5kW	2.5kW
Machining Capacity	Drill/Tap	φ13mm/ M8x1.25	φ13mm/ M8x1.25
Machine Dimensions
Machine Height		1,720mm (67.7″)	1,720mm (67.7″)
Floor Space		2,780 x1,536mm (109.5″ x 60.5″)	2,780 x1,536mm (109.5″ x 60.5″)
Machine Weight		5,500 kg (12,125Lbs.)	5,500 kg (12,125Lbs.)
