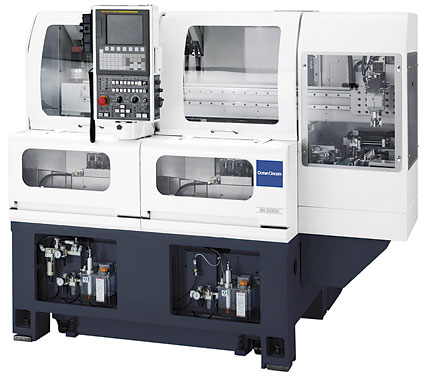

lathe cnc turning center miyano series gn-3200w
TECHNICAL SPECIFICATIONS
| Items | Model Name | GN-3200W |
| Power chuck size | Pneumatic | 3′(4′) |
| Diaphragm chuck size | Pneumatic | 4′ chuck |
| Max. Diameter of Collet Chuck | Stationary Type (Padding Style) | φ35 mm |
| Pull Type (Padding Style) | φ40 mm | |
| Max. turning length | 50 mm | |
| Spindle Motor (15 min. /cont.) | L/R-Spindle | 2.2/ 1.5 kW |
| Spindle speed range | L/R-Spindle | 80~8,000 min-1 |
| No of Turret | 2 | |
| Type of Turret | Horizontal linear turret | |
| Tool shank size | Sq. 10mm、Sq. 12mm (Sq. 16mm) | |
| Diameter of Drill Shank | φ20mm | |
| Turret Stroke | X1, X2-axis | 180mm |
| Z1, Z2-axis | 200mm | |
| Machine Height | 1,600 mm | |
| Spindle Center Height | 875mm | |
| Floor size (width × depth) | 1,400mm × 1,477mm | |
| Machine weight | 2,650 kg |
