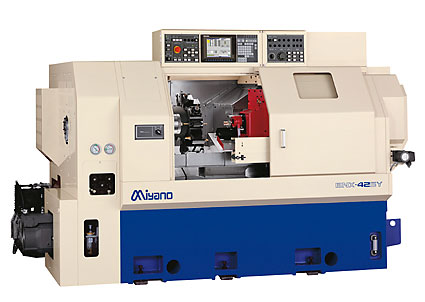

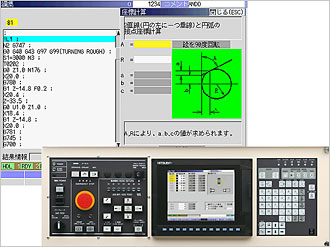

lathe cnc turning center miyano series bnx 42 s y
TECHNICAL SPECIFICATIONS
| Items | Model Name | BNX-42SY |
| Machining Capacity and Chuck System | ||
| Max Machining Diameter of Bar Work | L/R spindle | φ 42mm |
| Collet Chuck Type | L/R spindle | Stationary type |
| Standard Machining Length | 100mm | |
| Power Chuck | L/R spindle | 5″ |
| Spindle Nose | L/R spindle | Special Flat Type |
| Spindle Speed Range | L spindle | 60~6,000 min-1 |
| R spindle | 67~5,000 min-1 | |
| Spindle Motor 30 Min. Rating/ Cont. | L spindle | 11/7.5kW |
| R spindle | 5.5/3.7kW | |
| R Spindle Slide Stroke | X2-axis | 70mm |
| Z2-axis | 525mm | |
| Type of Turret | 12 St Turret | |
| Tool Shank Size | Sq. 20mm | |
| Diameter of Drill Shank | φ 25mm | |
| Turret Indexing & Clamp Method | AC Servo & Curvic Coupling | |
| Slide Stroke | X1-axis | 165 mm |
| Z1-axis | 246mm | |
| Y-axis | ± 40mm | |
| Rapid Traverse Rate | X1-, X2-axis | 18 m/ min |
| Z1-, Z2-axis | 20 m/ min | |
| Y-axis | 12 m/ min | |
| Max. Number of Revolving Tools | 12 | |
| Tool Spindle Speed Range | 60~4,000 min-1 | |
| Revolving Tool Motor | 1.5 kW | |
| Machine dimensions | ||
| Machine Height | 1,720 mm | |
| Floor Space | 2,774×1,510 mm | |
| Machine weight | 5,000kg | |
