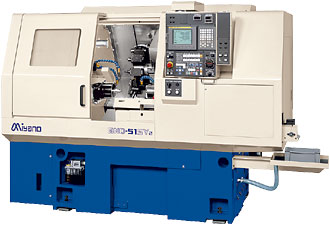

cnc turning center miyano series bnd 51s2 / 51 sy2
TECHNICAL SPECIFICATIONS
| Items | Model Name | BND-51S2 | BND-51SY2 |
| Max. bar capacity | φ51mm | φ51mm | |
| Max. turning length | Bar | 320mm | 320mm |
| Turret tool stations | 12 | 12 | |
| Turret slide travel | X-axis | 175mm | 175mm |
| Z-axis | 435mm | 435mm | |
| Y-axis | — | +40 mm / -35 mm | |
| Tool shank size | Sq. 20mm | Sq. 20mm | |
| Tool hole diameter | φ25mm | φ25mm | |
| Max. No. of revolving tool stations | 6 | 12 | |
| Main spindle speed range | 50~5,000 min-1 | 50~5,000 min-1 | |
| Main spindle motor | 15/11kW | 15/11kW | |
| Machine weight | Approx. | 4,800kg | 4,500kg |
