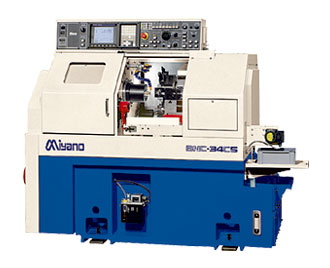

cnc turning center miyano series bnc 34c5 / 42c5
TECHNICAL SPECIFICATIONS
| Items | Model Name | BNC-34C5 | BNC-42C5 |
| Max. bar capacity | φ34 mm | φ42 mm | |
| Max. turning length Bar/ Chuck | 150/175mm | 150/175mm | |
| Main spindle speed range | 200~6,000 min-1 | 170~5,000 min-1 | |
| Main spindle motor 15 min/cont. R | VAC 7.5/5.5 kW | VAC 7.5/5.5kW | |
| Turret tool stations | 8 stations | 8 stations | |
| Tool shank size | Sq. 20 mm | Sq. 20 mm | |
| Tool hole diameter | φ25 mm | φ25 mm | |
| Turret slide travel | X-axis | 100mm | 100mm |
| Z-axis | 185mm | 185mm | |
| Turret indexing time | 0.2 Sec./1Pos. | 0.2 Sec./1Pos. | |
| No. of revolving tools stations (Opt.) | 4 | 4 | |
| Tool spindle speed range | 50 ~ 3,000 min-1 | 50 ~ 3,000 min-1 | |
| Tool spindle motor | AC0.75 kW | AC0.75 kW | |
| Tail-stock taper size | MT2 | MT2 | |
| Tail-stock max. thrust force | 4,270N(435kgf) | 4,270N(435kgf) | |
| Tail-stock slide travel | 175mm | 175mm | |
| Floor space (machine only) | 2,050 x 1,250 mm | 2,050 x 1,250mm | |
| Machine weight | Approx. | 2,500 kg | 2,500 kg |
