POWERFUL LASER CUTTING FOR HEAVY-DUTY APPLICATIONS

• Combines flexibility, ease of use and high capacity
• Ideal for heavy-duty applications with large 6000 x 2000 mm sheet capacity
• Flat plate processing up to 25 mm (1′) mild steel, 15 mm (0.600″) aluminum, and 20 mm (0.750″) stainless steel
• NC focus control for rapid changeover times and optimised cutting
• Standard configuration with two flat shuttle tables allows the user to load/unload one table while the machine processes parts on the other table
• Time-saving quick set-up features
• Unique constant beam length system eliminates the divergence of the beam, ensuring identical results over the entire cutting area, at optimal speeds, with superior edge quality
• Integrated LVD – Fanuc machine, control, laser source and motor drive package

Key Options:

• Plasma detection feature
• Choice of 4 or 6 kW laser sources
• CADMAN-L 3D offline software

Models available:

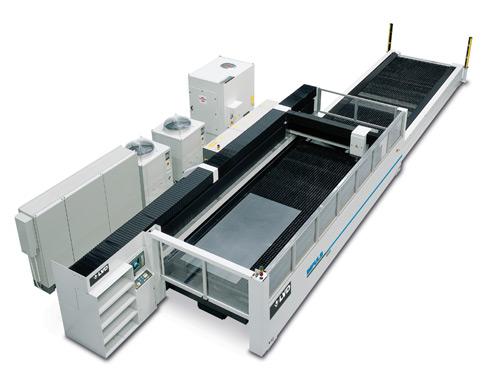

Impuls 6020
