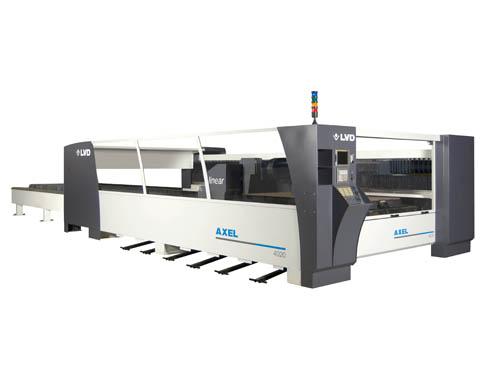

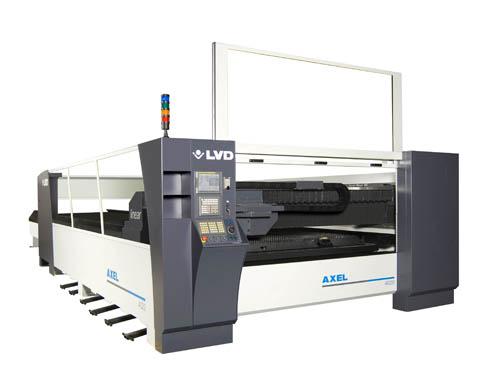

DYNAMIC LASER PROCESSING CENTER

• Dynamic laser processing of thick and thin materials
• In sheet sizes up to a full 4000 x 2000 mm (157″ x 78″)
• Incorporates the latest in linear drive technology

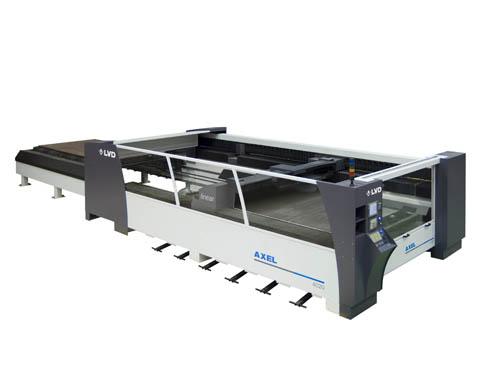

• Standard with integrated shuttle tables or optional automated load/unload system

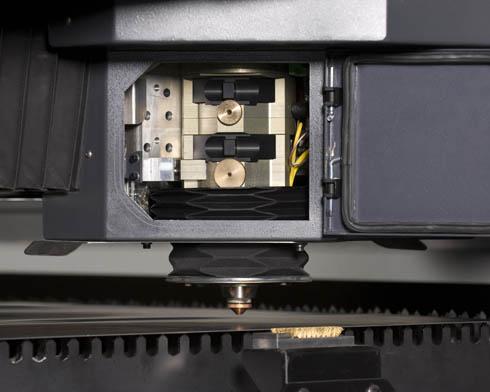

• High pressure cutting head accepts a 5”, 7.5” or 10” cutting lens
• Laser Eye optical sensor referencing system provides automatic and non-contact sheet referencing
• Capacitive height sensing maintains a constant distance between the head and the material being processed and adjusts to any undulations in the plate
• NC focus control for rapid changeover times and optimised cutting
• Constant beam length system ensures consistent cutting over the entire cutting area
• NC Optimization maximizes machine productivity without operator intervention by automatically determining the cutting head motion based on travel distance
• Fast cut-to-cut workpiece changeover
• High reliability with low maintenance and operation costs
• Integrated LVD – Fanuc machine, control, laser source and motor drive package
• High performance linear models available with 2.5 , 4 or 5 kW resonators achieving cutting speeds up to 40 m/min (1575 IPM) for maximum output

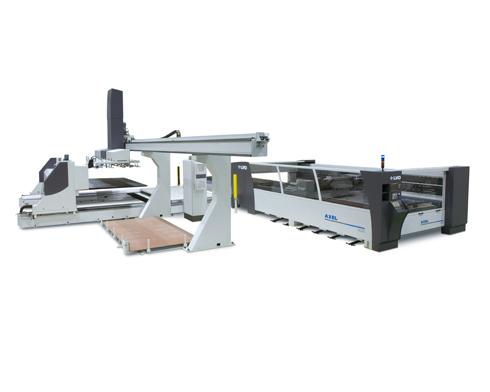

• Available with an automated load/unload system and can be retrofitted with such a system at a later date

Key options:

• Plasma detection feature
• Integrated automation optional load/unload
• Choice of 2.5, 4 or 5 kW laser sources
• Cadman-L offline software

Models available:

Axel 4020 S
Axel 4020 L
Axel 4020 L2 / L2.2
Axel 4020 L3
Axel 4020 LT
