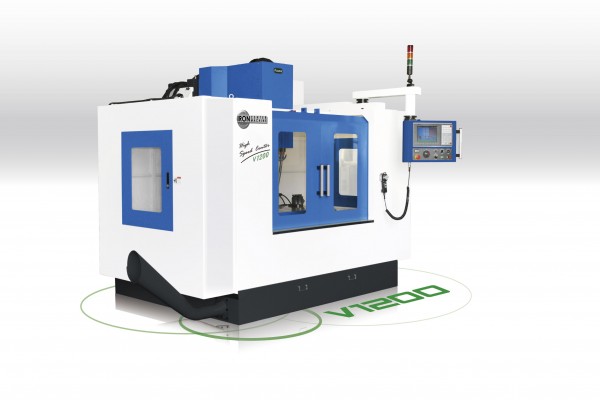

machining center iron center machine series a-v1200
V1200 Specifications |
| Travel | X axis | 1220 mm |
| Y axis | 660 mm | |
| Z axis | 640 mm | |
| Nose to Table | 150 ~ 790 mm | |
| Rapid | X / Y / Z | 24 / 24 / 20 M/min |
| Max Feed | X / Y / Z | 10 M/min |
| Table | Working surface | 1400 x 630 mm |
| T solt | 18mm / 5 mm / 125 mm | |
| Load capacity | 1200 kg | |
| ATC | ATC type | Armless |
| Tool number | 24 | |
| Coolant System | Pump power | 1 /2 HP |
| Tank capacity | 350 L | |
| Spindle | Max Speed | 8,000 (12,000) RPM |
| Taper | BT 40 (50) | |
| Motor Power | 15 / (20) HP | |
| Cooling way | (Oil cooler) | |
| Center to columa front | 720 mm | |
| Tool | Max. tool length | 250 mm |
| Max. tool weigth | 7 kg | |
| Motor | Motor of tool magazine | 100 W |
| X, Y & Z servomotors | 2 / 2 / 2 KW | |
| Other | ||
| Air pressure | 6~8 kgf/cm2 | |
| Power consumption(Max.) | 25 KVA | |
| Machine | Packing ( L x W x H ) | 330 x 230 x 260 (cm) |
| Net weight | 7,200 KGS |
| ★ Design and specifications are subject to change without prior notice. |
| Standard Accessories | Optional Accessories |
| 1.Work lamp 2.Tools box 3.Coolant pump 4.Coolant system 5.Air blow 6.Heat exchanger 7.Alarm lamp 8.Full closeed guard 9.Automatic lubrication system 10.Operation manual 11.Armless ATC |
1.Hard driver 2.USB Interface 3.Arm type ATC 4.4 / 5th Axis rotary table 5.Tool pre-setter 6.Oil-water separator 7.Oil mist coolant 8.CTS system 9.3D Touch probe 10.Chip conveyor 11.Remote MPG |
