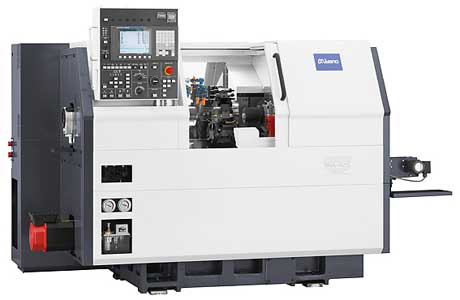

cnc turning center miyano series bna 34s/42s
TECHNICAL SPECIFICATIONS
| BNA-34S | BNA-42S | ||
| Max Machining Diameter of Bar Work | Main/Sub | φ34mm/φ34mm | φ42mm/φ34mm |
| Standard Machining Length | 100mm | 100mm | |
| Power Chuck | Main/Sub | 5″/— | 5″/— |
| Spindle Motor (15min. / Cont.) |
Main | 7.5/5.5kW | 7.5/5.5kW |
| Sub | 5.5/3.7kW | 5.5/3.7kW | |

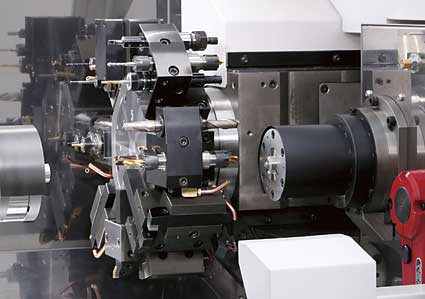

| Type of Turret | 8 St Turret | 8 St Turret | |
| Shank Height of Square Turning Tool | □20mm | □20mm | |
| Diameter of Drill Shank | φ25mm | φ25mm | |
| Slide Stroke | X-axis | 135mm | 135mm |
| Z-axis | 235mm | 235mm | |
| B-axis | 310mm | 310mm | |

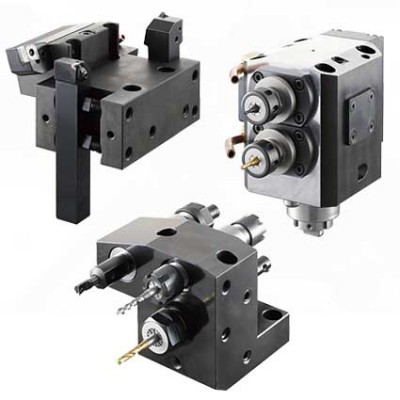

| Max.Number of Revolving Tools | 8 | 8 | |
| Floor Space | 2,150×1,290mm | 2,150×1,290mm | |
| Machine Height | 1,660mm | 1,660mm | |
| Machine Weight | 2,700kg | 2,700kg |
