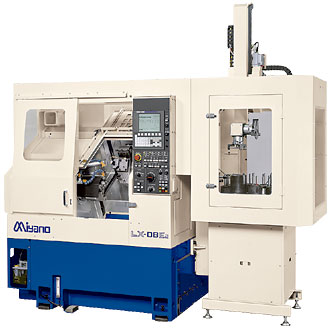

lathe cnc turning center miyano series lx 08 e2
TECHNICAL SPECIFICATIONS
| Items | Model Name | LX-08E2 |
| Power chuck | 8” oil-hydraulic | |
| Max. turning length | 220mm | |
| Main spindle speed range | 35~3,500 min-1 | |
| Main spindle motor 15 min/ cont | VAC 11/7.5kW | |
| Turret tool stations | 8 St. | |
| Tool shank size | Sq. 25mm | |
| Tool hole diameter | φ40mm | |
| Turret slide travel | X-axis | 150mm |
| Z-axis | 300mm | |
| Quill travel | 100mm | |
| Tail-stock slide adjustment | 185mm | |
| Quill type tail-stock Max. thrust force | 4,900N(500kgf) | |
| Tail-stock taper size | MT.3 | |
| Machine weight (machine only) | Approx. | 2,820kg |
