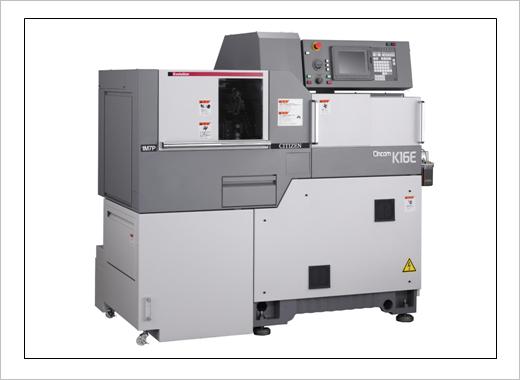

lathe sliding headstock type citizen cnc automatic series k12/16e
TECHNICAL SPECIFICATIONS
| Item | K12E VII | K16E VII | |
| Maximum machining diameter | Φ12mm | Φ16mm | |
| Maximum machining length | 200mm／Chuck (Motor type RGB) 80mm／Chuck (Kere type RGB) |
||
| Maximum drilling diameter for main spindle | Φ10mm | ||
| Maximum tapping diameter for main spindle | M8 | ||
| Main Spindle through-hole diameter | Φ16mm | Φ20mm | |
| Main Spindle speed | Max.15,000min-1 (Motor type RGB) Max.8,000min-1 (Kere type RGB) |
||
| Maximum drilling diameter for rotary tool | Φ5mm | ||
| Maximum tapping diameter for rotary tool | M4 | ||
| Spindle speed of the gang rotary tool | Max.6,000min-1 | ||
| Max. chuck diameter of back spindle | Φ12mm | Φ16mm | |
| Max. drilling diameter in back machining process | Φ6mm | ||
| Max. tapping diameter in back machining process | M5 | ||
| Back spindle speed | Max.10,000min-1 | ||
| Number of tools to be mounted | Max18 tools | ||
| Tool size | Turning tool | □12mm | |
| Rapid feed rate | X1 axis | 34m/min(Single24/min) | |
| X2 axis | 32m/min | ||
| Y axis | 34m/min(Single24/min) | ||
| Z1 axis | 32m/min | ||
| Z2 axis | 32m/min | ||
| Motors | For spindle drive | 2.2/3.7kW | |
| For tool spindle drive | 0.4kW | ||
| For back spindle drive | 0.4/0.75kW | ||
| For cutting coolant oil | 0.25kW | ||
| Input power capacity | 8kVA | ||
| Center height | 1,050mm | ||
| Weight | 2,200kg | ||
