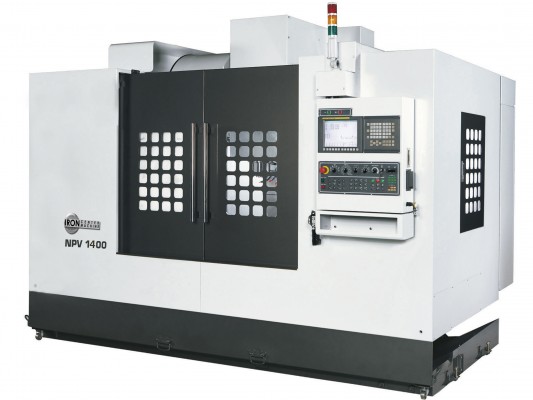

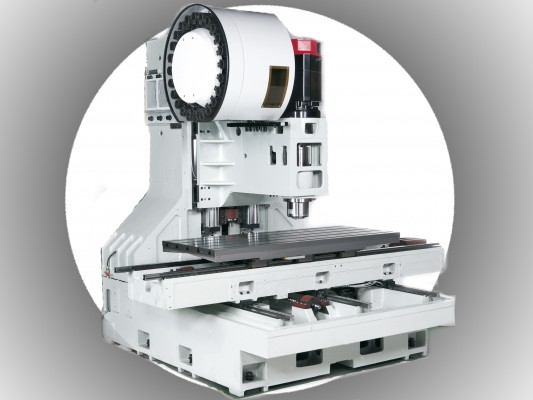

NPV1000 / NPV1200 / NPV1400
High efficiency solution

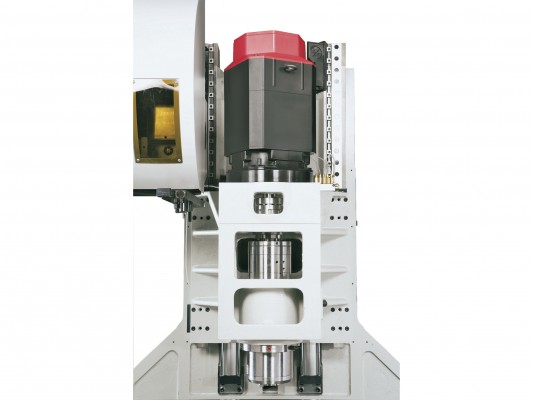

- IDD Spindle as standard on NPC Series
Built-ln Spindle is an option.
- Rapia traverse is 48M/min.
- Pneumatic counterbalance.
TECHNICAL DATA:
| MODEL |
|
NPV-1000 |
NPV-1200 |
NPV-1400 |
| Table |
| SIZE |
mm |
1070×510 |
1300×620 |
1500×620 |
| T-SLOT |
mm |
CD 150x18x3 |
CD 125x18x5 |
CD 125x18x5 |
| MAX. LOAD |
kg |
500 |
1000 |
1000 |
| STORKE |
| X-AXIS |
mm |
1050 |
1220 |
1420 |
| Y-AXIS |
mm |
530 |
660 |
660 |
| Z-AXIS |
mm |
610 |
610 |
610 |
| SPINDLE NOSE TO TABLE |
mm |
150-760 |
150-760 |
150-760 |
| SPINDLE CENTER TO Z-AXIS |
mm |
580 |
750 |
750 |
| SPINDLE |
| SPINDLE TAPER |
|
ISO NO,40 |
| SPEED |
rpm |
std. 10000 opt. 12000/18000 |
| POWER |
Kw |
11/15 |
11/15 |
11/15 |
| GUIDE WAY |
| LINEAR GUIDE WAY |
|
X/Y Ball type Z Roller type |
Roller type |
Roller type |
| SLIDE WAY X / Y / Z |
|
2/3/2 |
2/3/2 |
2/3/2 |
| BLOCK X / Y / Z |
|
4/5/6 |
6/6/6 |
6/6/6 |
| FEEDRATE |
| MAX. CUTTING FEED |
M/min. |
10000 |
10000 |
10000 |
| RAPID TRAVERSE X / Y / Z |
M/min. |
48 |
48 |
48 |
| ATC |
| TOOL CAPACITY |
|
std.24 opt.30 |
std.24 opt.30 |
std.24 opt.30 |
| #40 TOOL SIZE / ADJACENT TOOLS |
mm |
80×300 |
80×300 |
80×300 |
| #50 TOOL SIZE / ADJACENT TOOLS |
mm |
– |
– |
– |
| #40 MAX. TOOL WEIGHT |
kg |
7 |
7 |
7 |
| #50 MAX. TOOL WEIGHT |
kg |
– |
– |
– |
| TOOL SHANK |
set |
BT/CAT/DIN |
| GENERAL |
| POWER CAPACITY |
KVA |
30 |
30 |
30 |
| AIR REQUIRED |
I/min |
150 |
150 |
150 |
| AIR PRESSURE REQUIRED |
BAR |
6 |
6 |
6 |
| M/C SIZE |
mm |
2900x2250x2700 |
3500x2250x2800 |
3500x2250x2800 |
| M/C WEIGHT |
kg |
6000 |
8000 |
8500 |
|
|
|
|
|
|
NPV-1000 / NPV-1200 / NPV-1400 |
| FANUC OI-MC |
• |
| FANUC-18I-MB |
о |
| ISO40-8000RPM – BELT TYPE |
|
| IOS40-10000RPM – BELT TYPE |
|
| ISO40-12000RPM – BELT TYPE |
|
| ISO40-10000RPM – DIRECT TYPE |
• |
| ISO40-12000RPM – DIRECT TYPE |
о |
| ISO40-18000RPM – BUILT-IN TYPE |
о |
| ISO50-6000RPM – BELT TYPE |
|
| ISO50-6000RPM – GEAR BOX TYPE |
|
| CAM TYPE ATC 2 0 TOOLS |
|
| CAM TYPE ATC 24 TOOLS |
• |
| CAM TYPE ATC 30 TOOLS |
о |
| CAM TYPE ATC 32 TOOLS |
|
| FULL ENCLOSED SPLASH GUARD |
• |
| SEMI SPLASH GUARD |
|
| CNC ROTARY TABLE |
о |
| LINEAR SCALE WITH 3 AXES |
о |
| LINK BELT TYPE CHIP CONVEYOR |
о |
| SPINDLE OIL COOLER |
о |
| COOLANT THROUGH SPINDLE 20 BAR |
о |
|
|
|
|
